FULLY ENCLOSABLE TENTS

4x4 (Full Tent) 5x5 (Full Tent)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing (Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

GAZEBO-STYLE TENTS

4x4 (Gazebo) 5x5 (Gazebo)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 55kg 80kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Groundsheet PVC fabric 600 gr/sqm PVC fabric 600 gr/sqm
Inflatable tubing(boat fabric) PVC fabric 1000 grm/sqm PVC fabric 1000 grm/sqm

CUSTOMISATIONS

ARK can provide custom branding and labelling
Additional securing points can be added.

4x4 5x5
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing(Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm
INFLATABLE BOATS
RETUBES
TENTS
LIFT BAGS
FENDERS
CUSTOM BUILDS
ACCESSORIES

CANOE, KAYAKS & TUBES

Crocs Gecko Alligators Kayaks Prawn Solo Adventurer

KICKBOAT

Wildfly V-Boat

WHITEWATER RAFTS

Zambezis Niles Crocs Catarafts

POWER BOATS

Seal Fishalots Fishducs Otters Minnows

RESCUE BOATS

Arkangels Rescue Crocs Rescue Niles
Lifejackets Pumps Throwlines
Dry Bags & Buckets Boat Spares Paddles & Oars

THE CATARAFT FAMILY

SERIES

KW430 Wildcat
KC490 Cheetah
KL550 Lion

APPLICATIONS

Cats are highly versatile kraft with applications varying from quick nimble rescue kraft through to big load carrying support boats.

Our Cats are also popular as fishing platforms along with bucket seats and rope holders.

DESIGN PHILOSOPHY

ARK builds cataraft tubes for any make of frame, besides our standard range of Cats we can build them to your specification.

Our Tri D-ring attachments are rated to 1000kg each, so you can load big with piece of mind.

Road tested in our usual playground i.e. the wildest rivers all around the world.

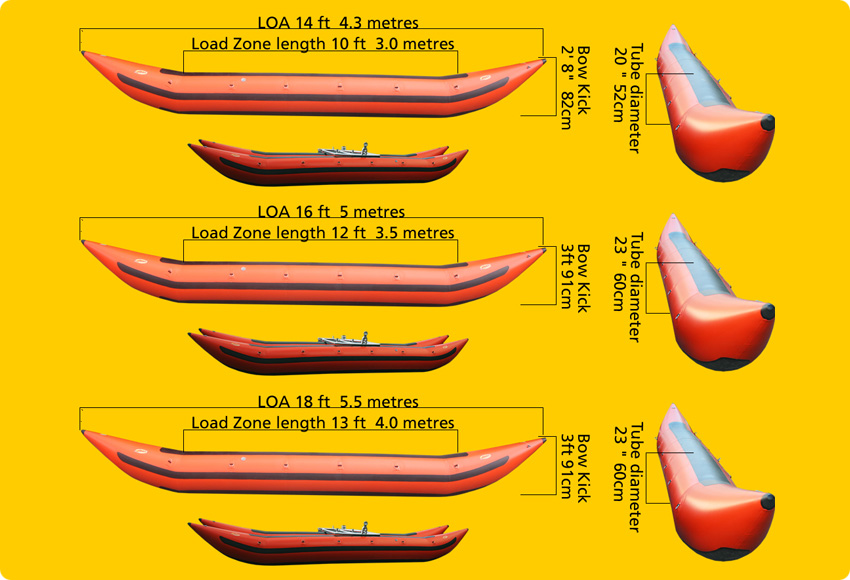

Name Wildcat Cheetah Lion
Code KW430 KC490 KL550
Length 4.3m (14ft) 4.9m (16ft) 5.53(18ft)
Weight 20kg 38kg 52kg
Tube
diameter		 540mm (22 inch) 540mm (22 inch) 600mm (24 inch)
Number of Chambers 2 per tube 3 per tube 4 per tube
Drings 6 8 8

If this is the boat you're after contact us.
